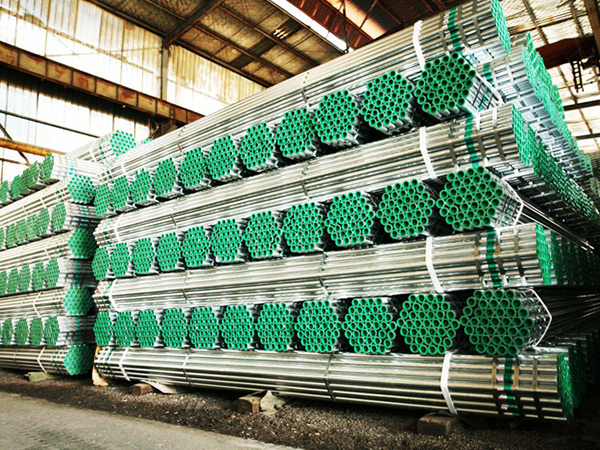

Lined with plastic composite pipe

The plastic-lined composite pipe is a steel-plastic composite pipe which is based on hot-dip galvanized pipe and lined with thin-walled plastic pipe on the inner wall of the steel pipe. The welded steel pipe with straight base pipe shall comply with the provisions of GB/T3091-2015; The outer anticorrosion of the base pipe is galvanized, and the galvanized layer is divided into zinc content of 300g and zinc content of 500g. The base pipe for seamless steel pipe shall comply with the provisions of GB/T8163. Therefore, the implementation standards for plastic-lined composite pipes are GB/T3091-2015 "Welded steel pipe for low-pressure fluid transportation" and GB/T28897-2012 "Steel-plastic composite pipe". It has the mechanical properties of steel pipe, and has the corrosion resistance of plastic pipe, the service life is three times that of ordinary galvanized pipe, at the same time, the inner wall is smooth, the fluid resistance in the pipe is small, no scaling, no breeding microorganisms, the fluid is not contaminated by secondary pollution, is the ideal pipeline for conveying direct drinking water, acid, alkali, salt, corrosive gas and other media. The diameter of the plastic-lined composite pipe has been based on the standard nominal diameter from DN15 to DN300, and can even be larger. The length is the same as above 6000mm allowable deviation +2mm. According to the conveying medium, it can be divided into cold water lined plastic tubes and hot water lined plastic tubes. The plastic layer in the plastic lining pipe for cold water is polyethylene code PE, and the bonding strength between the base pipe and the plastic lining layer is not less than 1.0MPa. The plastic layer in the hot-water lined plastic pipe is heat-resistant polyethylene code PE-RT, and the bonding strength between the base pipe and the lining plastic layer is not less than 1.5MPa. As a pressure water supply pipe, the pressure resistance can reach 1.6MPa and 2.5MPa according to the different wall thickness of the base pipe.

use

Steel-plastic composite pipe has excellent performance and a wide range of uses, often used in oil and natural gas transmission, industrial and mining pipes, drinking pipes, drainage pipes and other fields.

Product standard

GB/T28897-2012 Steel-plastic composite pipe

Suitable for corrosive fluid media and industrial pure water, chemical pure water, ionized water, non-ionized water transport, the service life is longer than stainless steel, can replace stainless steel pipe, longer than lined hose, glass steel pipe life.

Lined plastic tube details
